RFID NFC Flex ANT1356 40×40-350mm

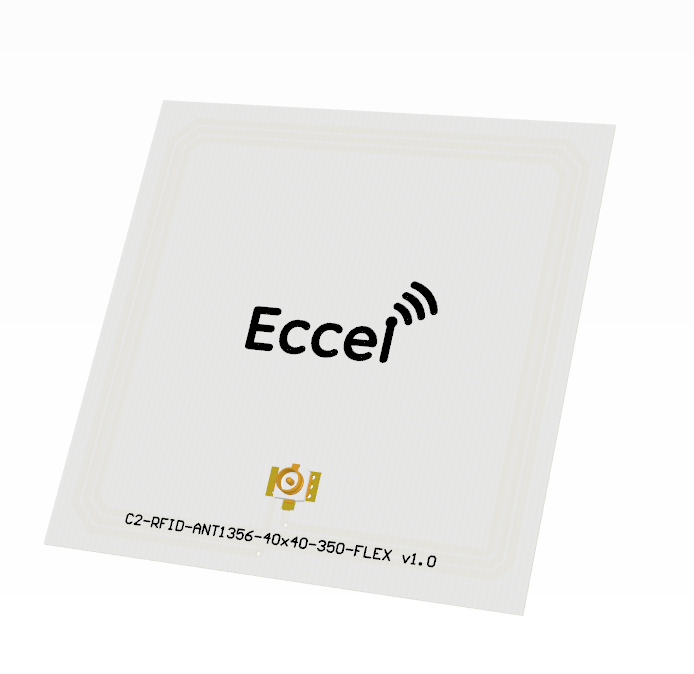

This Flex Antenna 40x40mm with a cable length of 350mm is a PCB antenna designed for use with the Pepper C2 Module. Antenna dimensions 40 x 40mm. Flexible PCB dimensions 40 x 40mm. Cable length 350mm.

The Flex ANT1356 40×40 antenna is made from polyimide flexible material. On the bottom side an adhesive layer is included.
To achieve self-adhesion, tesa® 8854 tape of 100um thickness is used.

The connector is a standard u.FL, I-PEX connector attached to the 1.13mm thick coaxial cable.
This connector mates with receptacles from various manufacturers, for example Molex 734120114.

PCB antenna products can be customized as per application requirements. Parameters such as the dimensions or shape of the coil or its inductance can be altered.
