Datalogger system

View as:
  • Avian Datalogger System

    From £351.44

    The Avian EM4xxx datalogger system is fully IP68 rated. It consists of 4 main elements: datalogger/battery unit, RFID unit, loop antennas and connection cable.

    Please select the required components in the Bundle Products tab to have the whole working system.

    Select options
  • Avian Datalogger/Battery Unit


    The datalogger/battery unit contains the storage memory for the tag detections and a rechargeable lithium ion battery pack. This is charged by a 5V power supply (USB) and is connected by a mini USB connector. On the current pre-production trial units, the system is a fixed polling rate of 7 scans per second. Any tag detected will not be stored in memory again for a second to prevent too many “same event” storages. On future releases, polling time will be user configurable, as will the “same event” delay time for ignoring events within a user selectable time of one another.

    Add to basket
  • Avian Loop antenna 45/65/80 mm


    Avian Loop Antenna. Specially tuned loop antenna of 45/65/80mm internal diameter and 1.3m connecting cable. To connect directly to our Avian datalogger / reader products. Waterproof and toughened.

    Select options

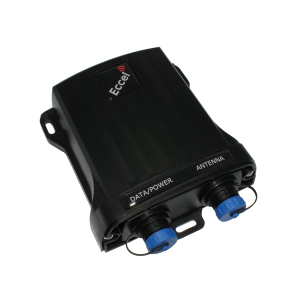

  • Avian RFID Unit


    The RFID unit can be connected with single or double antenna. It is IP68 rated and comes with two connectors. One to the antenna(s) and one to the datalogger/battery unit. The unit contains a small amount of memory where 100 detections are stored. Once more than 100 detections occur, the data is transferred to the datalogger/battery unit where it is stored as a CSV file.

    Add to basket

Showing all 4 results
