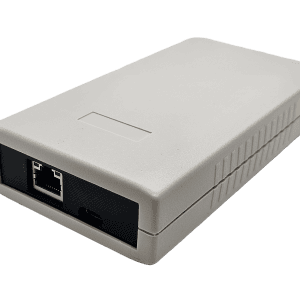

Pepper C1 PoE case
Pepper C1 PoE
The Pepper C1 PoE is a next-generation RFID reader designed for demanding embedded and networked applications. It’s a very powerful, and low cost full RFID/NFC read/write device with Ethernet, USB, UART interfaces that can operate in both host connected and stand alone mode. Power can be supplied via USB, or PoE. Supports MIFARE® Classic® in 1K, 4K memory, ICODE, MIFARE Ultralight®, MIFARE DESFire® EV1/EV2, MIFARE Plus® and NTAG2xx.
Price range: £60.50 through £66.45
The Pepper C1 PoE is a next-generation RFID reader designed for demanding embedded and networked applications. Based on the proven Pepper C1 platform, this enhanced model adds Ethernet connectivity with Power over Ethernet (PoE) support, a USB-C interface, UART 3.3V and all wireless options available in the Pepper C1 reader offering unmatched flexibility in installation and communication.
It supports all ISO14443A/B and ISO15693 tags and cards, including MIFARE® Classic, MIFARE® DESFire®, and NTAG. The device can operate as a TCP Server, TCP Client, and supports REST API, MQTT, and WebSocket protocols, making it ideal for modern IoT and cloud-connected systems and industrial automation.
The reader includes connectors for both an external 2.4GHz antenna (u.FL) and an external RFID antenna, providing extended range and versatility for customised applications.
With integrated 2.4GHz interface (BR/EDR mode + LE), the Pepper C1 PoE also supports low-power wireless HID mode, enabling wireless keyboard-style communication with mobile devices and PCs.
Power can be supplied via USB, PoE, or both simultaneously providing redundancy and installation flexibility.
An optional dedicated plastic enclosure is available for professional mounting and robust protection in real-world deployments.
Firmware customisation is available to meet specific needs, and we also offer RFID antenna tuning services for optimised performance in challenging, metal-dense environments.
See the following page for more details: Custom design.
Additional information
| Dimensions | 138 × 67 mm |
|---|---|
| Frequency | 13.56 MHz |
| Supply voltage | 5V, PoE, USB |
| Hardware interface | Ethernet, UART, USB |
| RFID Tag Standard | ICODE®, ISO/IEC 14443A, ISO/IEC 15693, MIFARE Classic® 1K, MIFARE Classic® 4K, MIFARE Classic® Mini, MIFARE Plus®, MIFARE Ultralight®, MIFARE® DESFire®, NTAG2xx® |
| Communication protocols | binary protocol, BR/EDR+LE, MQTT, REST API, TCP Client, TCP Server, WebSocket |
| Wireless technology | BR/EDR+LE, Wi-Fi (802.11 b/g/n) |
| Features | 2.4 GHz track antenna, GPIO, Internal RFID/NFC antenna, NFC, RFID, RGB LED, Socket for external 2.4 GHz antenna, Socket for external RFID antenna, Wi-Fi bridge |
| Plastic enclosure | Yes, No |
DATASHEET
 USER MANUAL |
GETTING STARTED |
SOFTWARE MANUAL |
DOWNLOADS
 Firmware |
Firmware (.bin file) & changelog |
| C1 Client |
C1 Client – the Windows application contains the protocol implementation and support for: – MIFARE® Classic® commands – MIFARE Ultralight® commands – MIFARE DESfire® commands – ICODE commands – network configuration commands – source code attached (QT/C++) |
| C1 Tool |
C1-tool – the simple command line tool, contains the protocol implementation and examples for: – MIFARE® Classic® commands – MIFARE Ultralight® commands – MIFARE DESfire® commands – ICODE commands – network configuration commands – source code attached (C) |
 Arduino Library |
Dedicated library for the Pepper C1 reader. Can be used also with all products from the C1 family, supporting ISO 14443A, MIFARE 1k, MIFARE 4k, Ultralight, NTAG2XX card/tag types, MIFARE DESFire, ISO 15693, ICODE. |
| STEP file |
3D model |
 Android app |
Pepper C1 Configurator. In this app you can: – Setup WiFi parameters for your network and connect your device. – Check for latest versions and where necessary download firmware updates. – Perform simple RFID functionality tests. |
 iOS app |
Pepper C1 Configurator for iOS |
CE DECLARATION:
| CE |
